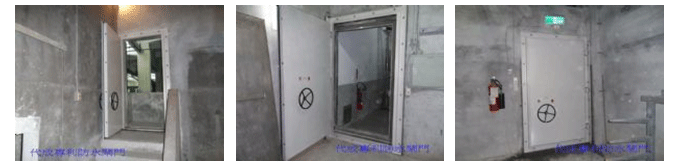

- For Entrance of Basement , Power Room and Important System Room.
- The gate structure, frame and doors and other accessories are using # 304 stainless steel, provide in material documents.

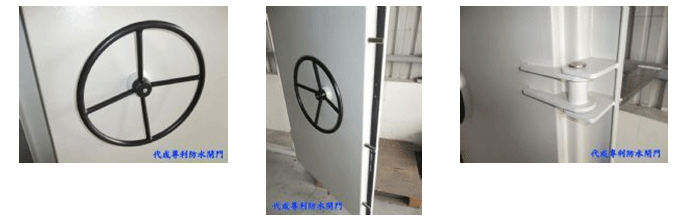

- The watertight gate structure using ø19mm hinge and precision laser cut 10mm thick hinge plate combination, doors use 2 tx 4 x 8cm strengthen pipe, to achieve effective compression structure.
- The gate using ø35mm turntable (ø19mm solid rod ), led ø19mm linked tightening bolt, open or close the gate is easily.
- External structure frame, doors and turntable can be according to customer requirements in powder coating finished.
- Fixed method fixation by M16 x 15cm deep chemical anchor.
- EPDM material is waterproof, weather resistance and high temperature of 160 ℃ anti-acid, to avoid falling into cracks aging, provide material documents.
|
